Ultralight Series Inlay丨Ultralight Chip Inlay
Ultralight Series Inlay uses NXP Mifare Ultralight Inlay+ substrateless double-sided adhesive + release paper in accordance with IEC/ISO 14443A air interface protocol. It has advanced data encryption and two-way password verification system, and 16 comple
Inquiries
Product information

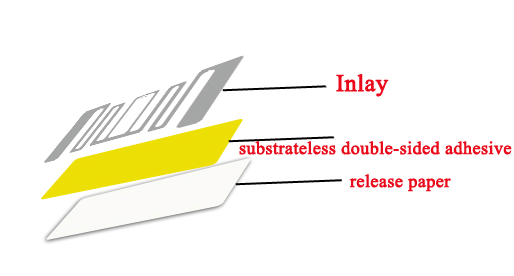

Ultralight Series Inlay丨Ultralight Chip Inlay Structure Diagram
Ultralight Series Inlay丨Ultralight Chip Inlay Technical Parameters
Ultralight Series Inlay丨Ultralight Chip Inlay Applications
New retail, asset management, commodity retail, product management, home and school entrance and exit channels, application of library management system, enterprise park, shaft construction site, civil blast enterprise personnel attendance, consumables anti-counterfeiting application, tooling washing management application, large conference personnel channel system , management system of fixed assets, management and application of medical logistics system, management of intelligent shelves, management of jewelry inventory
Ultralight Series Inlay丨Ultralight Chip Inlay Technical Parameters
| Data storage： | ≥10 years |
| Erasure times： | ≥100,000 times |
| Working temperature： | -20℃- 75℃（Humidity20%~90%） |
| Storage temperature： | -40-70℃（Humidity20%~90%） |
| Working frequency： | 13.56MHz |
| Antenna size： | Customized |
| Protocol： | ISO14443A |
| Surface material： | Chrome paper、PVC、PET |
| Encapsulation technology： | Reverse welding+compound |
| Packaging material： | Mifare Ultralight Inlay+Non-base double-sided adhesive+Release paper |
| Reading distance ： | 0.2-8M |
| Chips： | Mifare Ultralight Series |
| Process individuation： | Chip internal code，Write data. |
| Packaging ： | Electrostatic bag packaging, single row 2000 sheets / roll, 6 rolls / box |
Ultralight Series Inlay丨Ultralight Chip Inlay Applications
New retail, asset management, commodity retail, product management, home and school entrance and exit channels, application of library management system, enterprise park, shaft construction site, civil blast enterprise personnel attendance, consumables anti-counterfeiting application, tooling washing management application, large conference personnel channel system , management system of fixed assets, management and application of medical logistics system, management of intelligent shelves, management of jewelry inventory
