Fragile Label丨Fragile Adhesive Label
The breaking strength of the fragile label is much lower than that of the adhesive. It has the characteristics of not being completely peeled off after being pasted and not reusable. The fragile standard self-adhesive surface material is processed into a
Inquiries
Product information

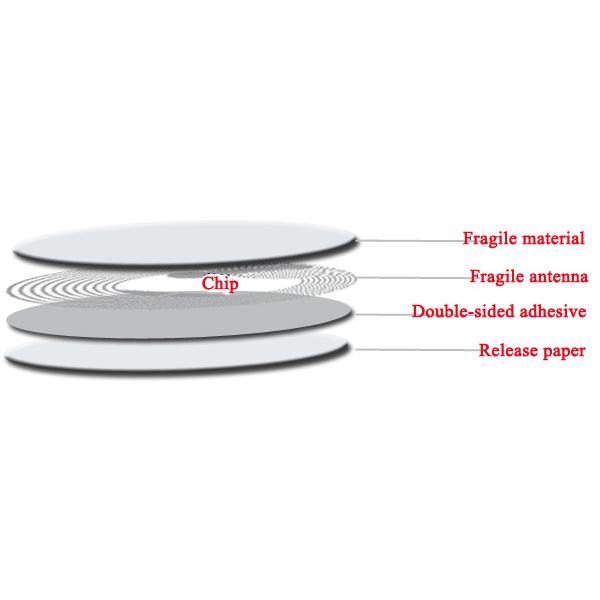

Fragile Label丨Fragile Adhesive Label Structure Diagram
Fragile Label丨Fragile Adhesive Label Technical Parameters
Fragile Label丨Fragile Adhesive Label Applications
Used in mobile phones, telephones, computer accessories, automotive electronics, alcohol, pharmaceuticals, food, cosmetics, entertainment tickets and other high-end business quality assurance
Fragile Label丨Fragile Adhesive Label Technical Parameters
| Data storage： | ≥10 years |
| Erasure times： | ≥100,000 times |
| Working temperature ： | -20℃- 75℃（humidity 20%~90%） |
| Storage temperature： | -40-70℃（humidity 20%~90%） |
| Working frequency： | 860-960MHz 、13.56MHz |
| Antenna size： | Customized |
| Protocol： | IS014443A/ISO15693ISO/IEC 18000-6C EPC Class1 Gen2 |
| Working mode： | Passive |
| Surface material： | Fragile |
| Reading distance： | 8m |
| Packaging material： | Fragile diaphragm+chip+Fragile antenna+Non-base double-sided adhesive+Release paper |
| Chips： | lmpinj(M4、M4E、MR6、M5),Alien(H3、H4)、S50、FM1108、ult series、/I-code series 、Ntag series |
| Process individuation： | Chip internal code，Write data. |
| Printing process： | Four color printing, Spot color printing, Digital printing |
| Packaging ： | Electrostatic bag packaging, single row 2000 sheets / roll, 6 rolls / box |
Fragile Label丨Fragile Adhesive Label Applications
Used in mobile phones, telephones, computer accessories, automotive electronics, alcohol, pharmaceuticals, food, cosmetics, entertainment tickets and other high-end business quality assurance
