Flexible Anti-metal Label丨Anti-metal Label丨Flexible Label丨Label
Flexible Anti-metal label is made of Teflon, coated paper, Inlay, substrate-free double-sided tape and release paper. Flexible anti-metal label has certain flexibility and can be bent. It has good metal resistance, good performance, good directionality an
Inquiries
Product information

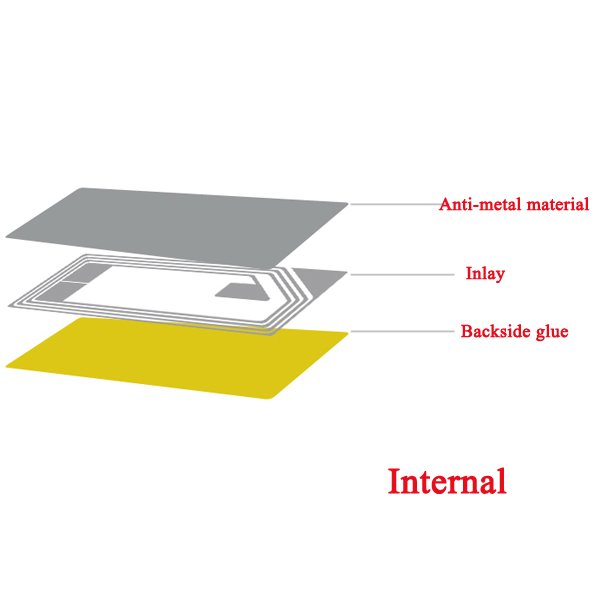

Flexible Anti-metal Label丨Anti-metal Label丨Flexible Label Structure Diagram
Flexible Anti-metal Label丨Anti-metal Label丨Flexible Label Technical Parameters
Flexible Anti-metal Label丨Anti-metal Label丨Flexible Label Applications:
Vehicle management, athletes' performance management, asset management, file management, drug management, jewelry management, retail management, power asset management, enterprise asset management, equipment management, hazardous materials management, field management, pallet management in logistics, asset tracking , metal shelf management, cylinder tracking, traffic control, logistics management, dangerous goods management.
Flexible Anti-metal Label丨Anti-metal Label丨Flexible Label Technical Parameters
| Data storage： | ≥10 years |
| Erasure times： | ≥100,000 times |
| Working temperature： | -20℃- 75℃（humidity 20%~90%） |
| Storage temperature： | -40-70℃（humidity 20%~90%） |
| Working frequency： | 860-960MHz 、13.56MHz |
| Antenna size： | Customized |
| Protocol： | ISO18000-6C、ISO14443A |
| EPC:128 bits | User：512 bits |
| TID： | 48 bits |
| Working mode： | Passive |
| Surface material： | Chrome paper、PVC、PET |
| Encapsulation technology： | Reverse welding+compound |
| Reading distance： | 8m |
| Packaging material： | Teflon+chrome paper+ Inlay+Non-base double-sided adhesive paper |
| Chips： | lmpinj(M4、M4E、MR6、M5),Alien(H3、H4)、S50、FM1108、ult series、/I-code series、Ntag series |
| Process individuation： | Chip internal code，Write data. |
| Printing process： | Four color printing, Spot color printing, Digital printing |
| Packaging ： | Electrostatic bag packaging, single row 2000 sheets / roll, 6 rolls / box |
Flexible Anti-metal Label丨Anti-metal Label丨Flexible Label Applications:
Vehicle management, athletes' performance management, asset management, file management, drug management, jewelry management, retail management, power asset management, enterprise asset management, equipment management, hazardous materials management, field management, pallet management in logistics, asset tracking , metal shelf management, cylinder tracking, traffic control, logistics management, dangerous goods management.
