HF Dry Inlay丨13.56MHz Dry Inlay

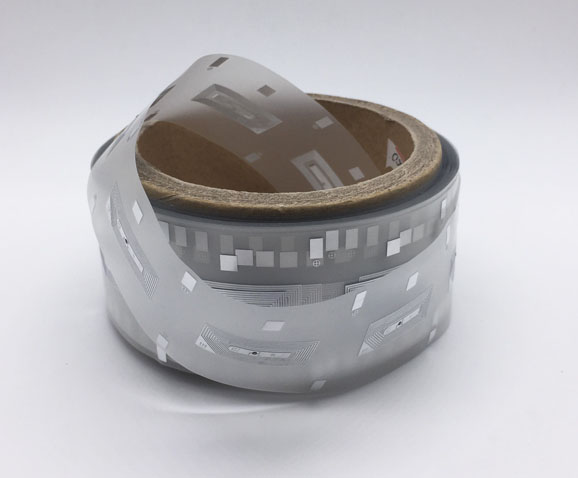

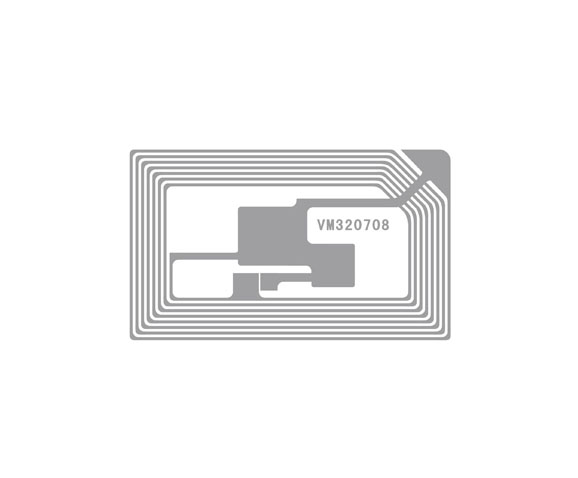

HF dry Inlay is made up of an aluminum-etched antenna and 13.56MHz chip. HF dry Inlay is without glue and the overall thickness is 0.07mm±0.005mm. HF dry Inlay is a communication technology with a working frequency of 13.56 MHz, which can identify specif
Product information

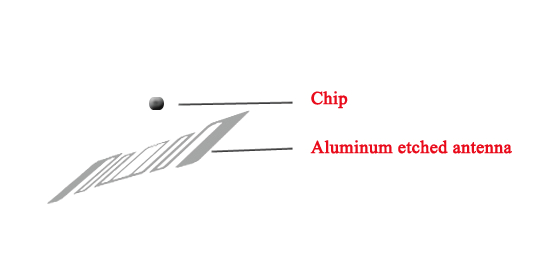

HF Dry Inlay丨13.56MHz Dry Inlay  Structure Diagram

HF Dry Inlay丨13.56MHz Dry Inlay  Technical Parameters
Data storage: ≥10 years
Erasure times: ≥100,000 times
Working temperature: -20℃- 75℃(Humidity20%~90%)
Storage temperature: -40-70℃(Humidity20%~90%)
Working frequency: 13.56MHz
Antenna size: Customized
Protocol: ISO14443A 、ISO15693
Surface material: Chrome paper、PVC、PET

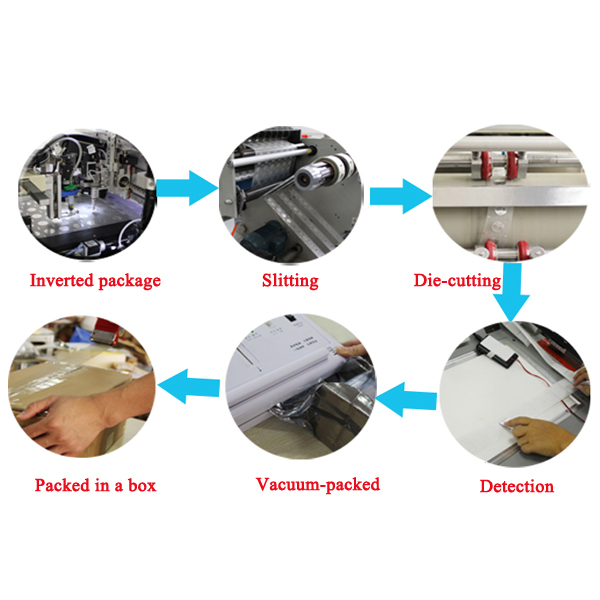

Encapsulation technology: Reverse welding+compound
Packaging material: Aluminum etched antenna+Chips
Reading distance : 0.2-8M
Chips: S50/FM1108/ult Series /I-code Series /Ntag Series
Process individuation: Chip internal code,Write data.

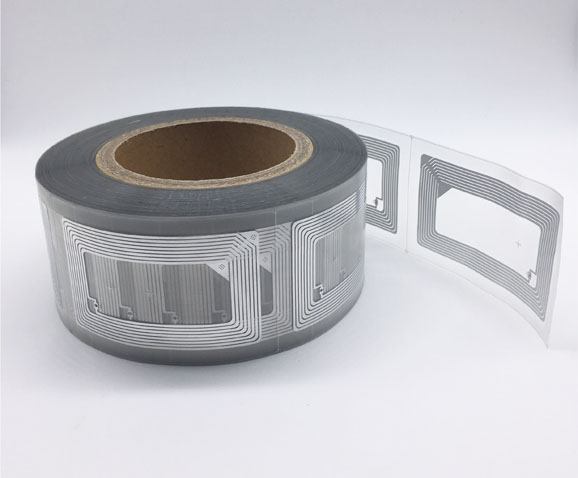

Packaging: Electrostatic bag packaging, single row 2000 sheets / roll, 6 rolls / box


HF Dry Inlay丨13.56MHz Dry Inlay Applications

New retail, asset management, commodity retail, product management, home and school entrance and exit channels, application of library management system, enterprise park, shaft construction site, civil blast enterprise personnel attendance, consumables anti-counterfeiting application, tooling washing management application, large conference personnel channel system , management system of fixed assets, management and application of medical logistics system, management of intelligent shelves, management of jewelry inventory
