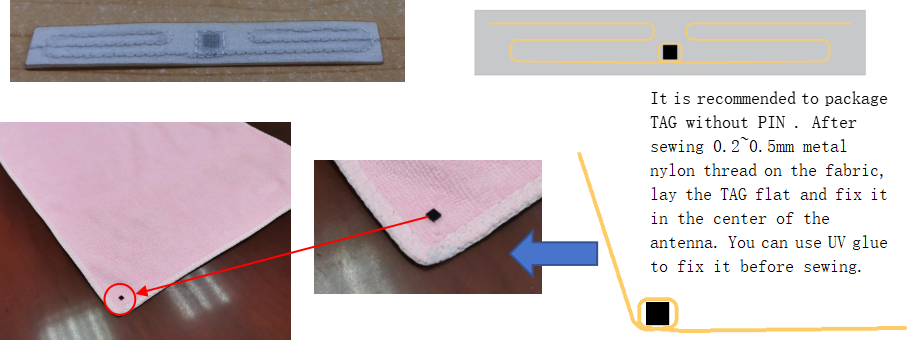

Metal as a coupling line application, such as tools

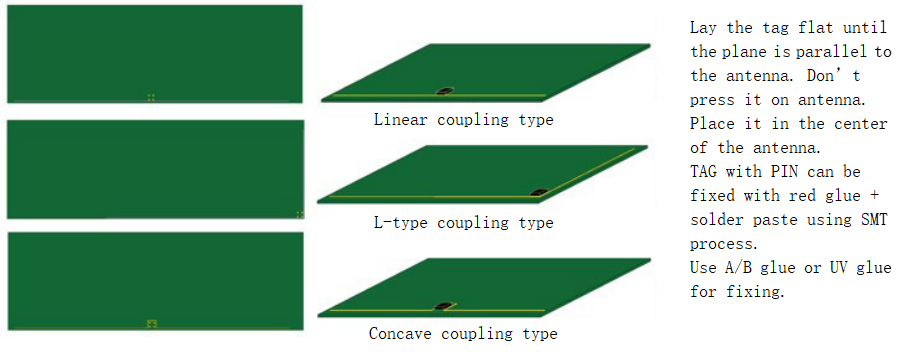

Metal is used as a coupling wire application, such as metal nameplates
Packaging Specification:
The standard packaging specifications of this product are shown in the table below. If you need other packaging forms, you need to discuss with our company in advance.

NO.	Project	Description
1	Shipping Form	Deliver in reel format
2	Quantity	5000pcs/ Reel；25000pcs/Box
3	Tape Width	12±0.3mm
4	Tag Pitch	8±0.1mm
5	Tape Material	PS
6	Reel OD	Φ330±2mm
7	Reel ID	Φ13.5±0.1mm
8	Reel Material	PS

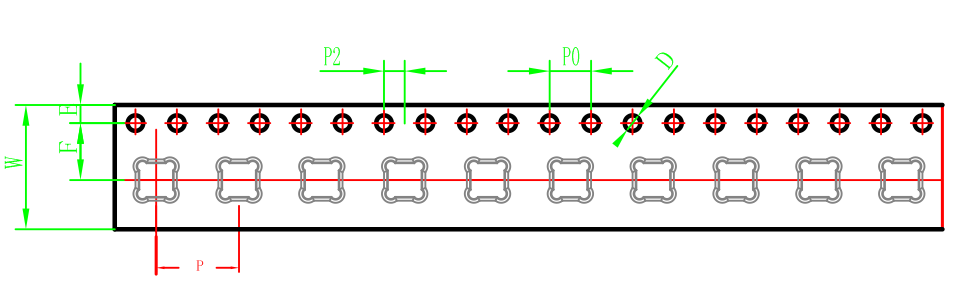

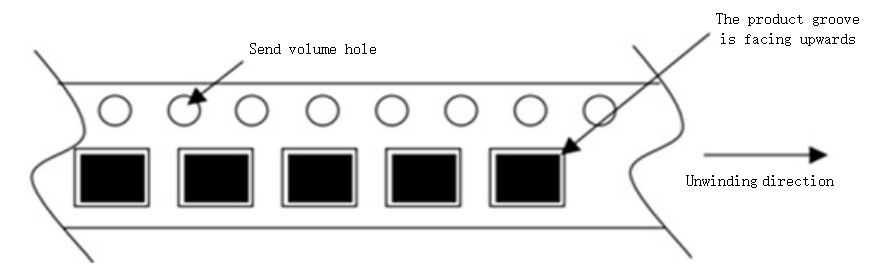

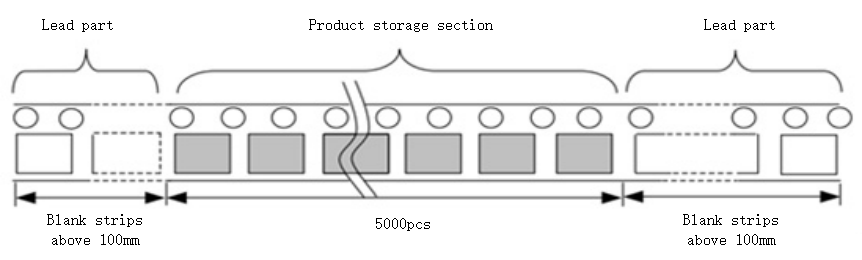

Tape specifications
Tape specifications are shown in Figure 1~3 below.
Tape specifications

W	12.00±0.30	P2	2.0±0.15	P	8±0.10
E	1.75±0.10	P0	4.00±0.10	Unit	mm
F	5.5±0.10	D	1.5+0.1/-0	Material	PS

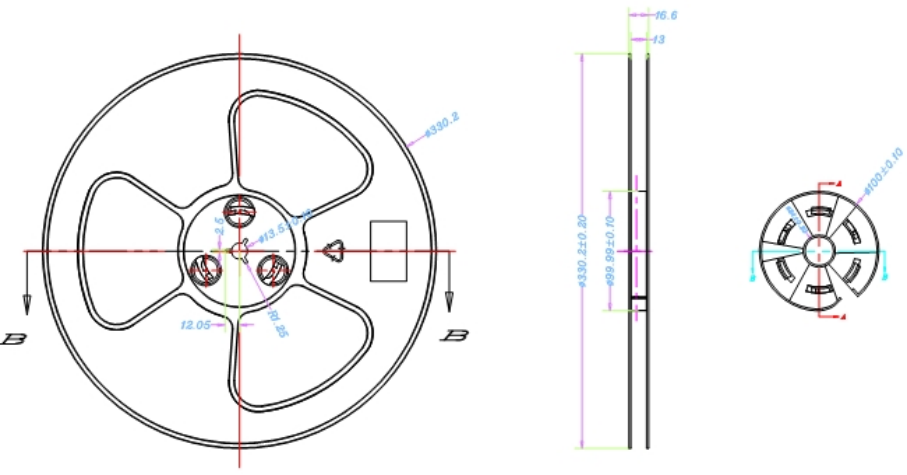

Reel specifications
Packing case and label format:
The following table describes the packing case and label format.

	Packaging Form	Label Image	Quantity
Reel		1 pcs 90×50mm	5000pcs (Max)
Foil bag		1 pcs 90×50mm	5000pcs (Max)
Inner box		1 pcs 90×50mm	5000pcs (Max)
Outer box		2 pcs 160×90mm	25000pcs (Max)

Label specifications and paste quantity
"Company name", "Model", "Lot number" and "quantity" should be marked on the labels and pasted on the reel, inner box and outer box respectively.
Number of Labels: Reel (1 piece each), Foil bag(1 piece each), Inner box (1 piece each), Outer box (Inner box quantity)
