HF Wet Inlay丨13.56MHz Wet Inlay

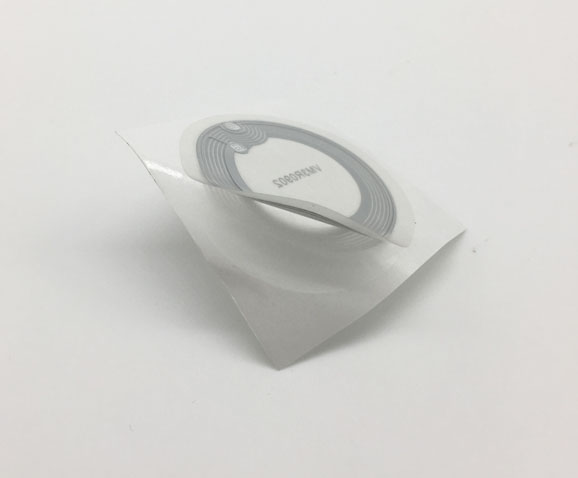

HF wet inlay is formed by die-cutting after the dry Inlay is covered with a layer of self-adhesive. In addition to the thickness, the wet Inlay also has its own die-cutting dimensions. The wet Inlay generally has a thickness of 0.15±0.04mm, which is simpl
Inquiries
Product information

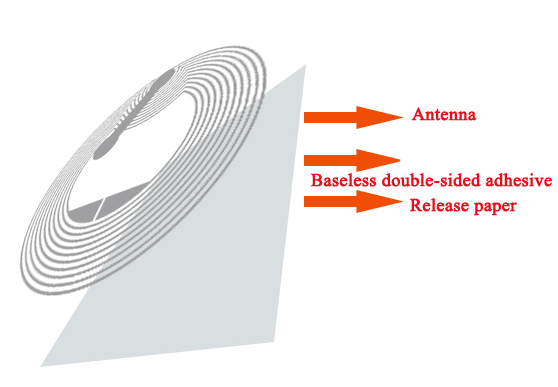

HF Wet Inlay丨13.56MHz Wet Inlay Structure Diagram
HF Wet Inlay丨13.56MHz Wet Inlay Technical Parameters
HF Wet Inlay丨13.56MHz Wet Inlay Applications
New retail, asset management, commodity retail, product management, home and school entrance and exit channels, application of library management system, enterprise park, shaft construction site, civil blast enterprise personnel attendance, consumables anti-counterfeiting application, tooling washing management application, large conference personnel channel system , management system of fixed assets, management and application of medical logistics system, management of intelligent shelves, management of jewelry inventory
HF Wet Inlay丨13.56MHz Wet Inlay Technical Parameters
| Data storage： | ≥10 years |
| Erasure times： | ≥100,000 times |
| Working temperature： | -20℃- 75℃（Humidity20%~90%） |
| Storage temperature： | -40-70℃（Humidity20%~90%） |
| Working frequency： | 13.56MHz |
| Antenna size： | Customized |
| Protocol： | ISO14443A 、ISO15693 |
| Surface material： | Chrome paper、PVC、PET |
| Encapsulation technology： | Reverse welding+compound |
| Packaging material： | Inlay+ substrateless double-sided adhesive + release paper |
| Reading distance ： | 0.2-8M |
| Chips： | S50/FM1108/ult Series /I-code Series /Ntag Series |
| Process individuation： | Chip internal code，Write data. |
| Packaging ： | Electrostatic bag packaging, single row 2000 sheets / roll, 6 rolls / box |
HF Wet Inlay丨13.56MHz Wet Inlay Applications
New retail, asset management, commodity retail, product management, home and school entrance and exit channels, application of library management system, enterprise park, shaft construction site, civil blast enterprise personnel attendance, consumables anti-counterfeiting application, tooling washing management application, large conference personnel channel system , management system of fixed assets, management and application of medical logistics system, management of intelligent shelves, management of jewelry inventory
