Industry | Medical High Reliability UHF On-metal Tag
High Reliability UHF On-metal Tag specially designed for RFID applications of metal objects such as tools, medical instruments etc.!
Inquiries
Product information
Overview
High Reliability UHF On-metal Tag specially designed for RFID applications of metal objects such as tools, medical instruments etc.!
Robust and Industrial-grade tags have outstanding characteristics of metal resistance, high temperature resistance, corrosion resistance and high waterproof level (IP67)!
Specification
Performance Test
Test Equipment: Rodin Bell Orca50 Air handheld
Output Power: 33dBm
Frequency: 920~925MHz
The tag is tested on the scalpel
Application: Tools, instruments, instruments, and other metal objects
Specifications:
Reference Picture:
Installation Notes:High Reliability UHF On-metal Tag specially designed for RFID applications of metal objects such as tools, medical instruments etc.!
Robust and Industrial-grade tags have outstanding characteristics of metal resistance, high temperature resistance, corrosion resistance and high waterproof level (IP67)!
Specification
- Dimension: 5.8×2.0×1.7mm
- Chip: Impinj Monza R6P
- Frequency: 860~940MHz
- Installation: Attached on metal (glue), Embedded in metal (slotting + glue)
- Read Range: 10 ~ 90cm (depends on installation position and slotting depth)
- Temperature Resistance: -196℃/>2000h,
- 125℃/>1000h, 260℃/5min
- Working Temperature: -40℃~85℃
- IP Rating: IP67
- Effective group reading & even stack reading
Performance Test
Test Equipment: Rodin Bell Orca50 Air handheld
Output Power: 33dBm
Frequency: 920~925MHz

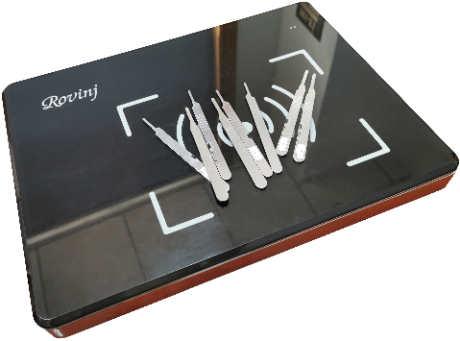

The tag is tested on the scalpel
| Installation site | 100% Embedded | 50% Embedded | Attach on surface |
| X Direction | 53cm | 52cm | 52cm |
| Y Direction | 85cm | 91cm | 100cm |
| Z Direction | 17cm | 17cm | 19cm |
*The test data is for reference only
Application: Tools, instruments, instruments, and other metal objects
Specifications:
|
Dimension
|
5.8×2.0×1.7mm |
| Frequency | 860~960MHz |
| Material | Epoxy |
| Chip | Impinj Monza R6P |
| Memory | TID: 96bit; EPC: 96bit; User: 64bit |
| Protocol | ISO/IEC 18000-6C |
| Temperature resistance | -196°C /2000h; 125°C/1000h; 260°C/5min |
| Operating temperature | -45~85°C |
| Storage temperature | -45~85°C |
| Data preservation | 10 years |

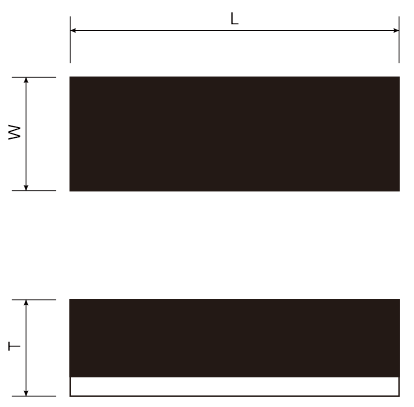

Reference Picture:
| Project | Dimension(mm) |
| L | 5.8±0.15 |
| W | 2.0±0.15 |
| T | 1.7±0.2 |

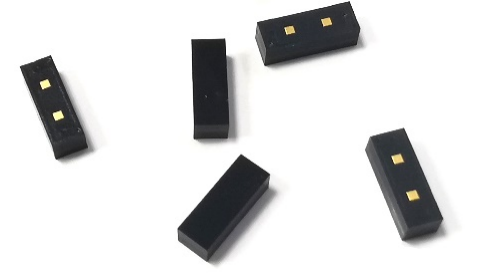

The High Reliability UHF On-metal Tag is specially designed for UHF anti-metal. Please paste the two PIN marks on the bottom of the TAG into the metal when installing, and then fix and wrap the TAG with A/B glue. The glue is recommended Loctite M-21HP A/B glue.
Packaging Specification:
- 1000 pcs/roll, vacuum bag packaging.
- 10K/carton (according to the actual number of marks).
