Heat Sensitive Label丨RFID Label
Heat sensitive label is made of a high-heat-sensitive coating paper and Inlay packaged with an RFID tag. Heat sensitive label has the advantages of three-proof (anti-dirty, waterproof, and oil-proof). Widely used in electronics, medicine, food, toys
Inquiries
Product information

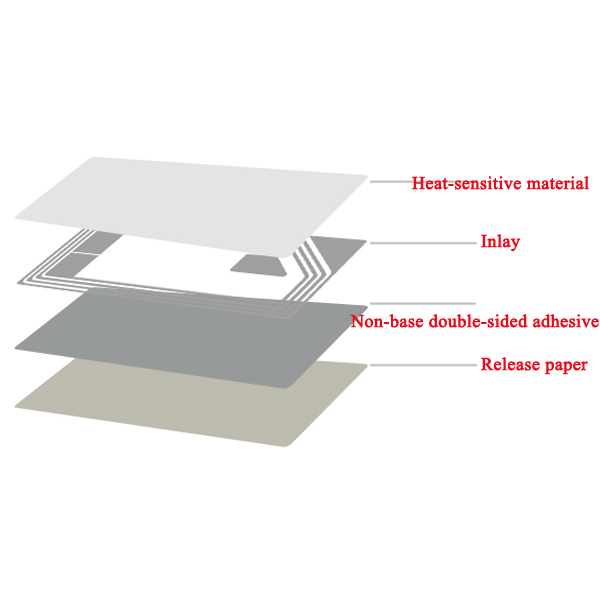

Heat Sensitive Label丨RFID Label Structure Diagram
Heat Sensitive Label丨RFID Label Technical Parameters
Heat Sensitive Label丨RFID Label Applications:
Electronics, medicine, food, toys, etc.
Heat Sensitive Label丨RFID Label Technical Parameters
| Data storage： | ≥10 years |
| Erasure times： | ≥100,000 times |
| Working temperature： | -20℃- 75℃（humidity 20%~90%） |
| Storage temperature： | -40-70℃（humidity 20%~90%） |
| Working frequency： | 860-960MHz 、13.56MHz |
| Antenna size： | Customized |
| Protocol： | IS014443A/ISO15693ISO/IEC 18000-6C EPC Class1 Gen2 |
| Working mode： | Passive |
| Surface material： | Heat Sensitive Paper |
| Encapsulation technology： | Reverse welding+compound |
| Reading distance： | 8m |
| Packaging material： | Heat Sensitive Paper+chrome paper+ Inlay+Non-base double-sided adhesive paper |
| Chips： | lmpinj(M4、M4E、MR6、M5),Alien(H3、H4)、S50、FM1108、ult series、/I-code series、Ntag series |
| Process individuation： | Chip internal code，Write data. |
| Printing process： | Four color printing, Spot color printing, Digital printing |
Heat Sensitive Label丨RFID Label Applications:
Electronics, medicine, food, toys, etc.
