H4 Wet Inlay丨860-960MHz UHF Wet Inlay
H4 Inlay is die-cutting from Alien H4 dry Inlay coated with a layer of adhesive. Besides thickness, H4 wet Inlay also has its own die-cutting size. Wet Inlay size: 0.15±0.04mm. H4 Inlay is capable of reading multiple tags at one time, strong penetrability
Inquiries
Product information

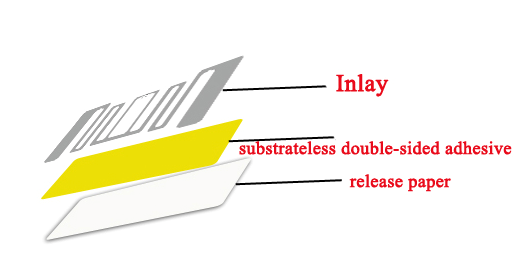

H4 Inlay丨H4 Wet Inlay Structure Diagram
H4 Inlay丨H4 Wet Inlay Technical Parameters
H4 Inlay丨H4 Wet Inlay Applications
New retail, asset management, commodity retail, product management, home and school entrance and exit channels, application of library management system, enterprise park, shaft construction site, civil blast enterprise personnel attendance, consumables anti-counterfeiting application, tooling washing management application, large conference personnel channel system , management system of fixed assets, management and application of medical logistics system, management of intelligent shelves, management of jewelry inventory
H4 Inlay丨H4 Wet Inlay Technical Parameters
| Data storage： | ≥10 years |
| Erasure times： | ≥100,000 times |
| Working temperature： | -20℃- 75℃（Humidity20%~90%） |
| Storage temperature： | -40-70℃（Humidity20%~90%） |
| Working frequency： | 860-960MHz |
| Antenna size： | Customized |
| Protocol： | ISO18000-6C |
| Surface material： | Chrome paper、PVC、PET |
| Encapsulation technology： | Reverse welding+compound |
| Packaging material： | Alien H4 Dry Inlay+Non-base double-sided adhesive+Release paper |
| Reading distance： | 0.2-8M |
| Chips： | Alien H4 |
| Process individuation： | Chip internal code，Write data. |
| Packaging： | Electrostatic bag packaging, single row 2000 sheets / roll, 6 rolls / box |
H4 Inlay丨H4 Wet Inlay Applications
New retail, asset management, commodity retail, product management, home and school entrance and exit channels, application of library management system, enterprise park, shaft construction site, civil blast enterprise personnel attendance, consumables anti-counterfeiting application, tooling washing management application, large conference personnel channel system , management system of fixed assets, management and application of medical logistics system, management of intelligent shelves, management of jewelry inventory
