S50 Inlay丨M1 Inlay丨S50 Wet Inlay丨HF Inlay
S50 Inlay uses NXP Mifare S50Inlay+ substrateless double-sided adhesive + release paper in accordance with the IEC/ISO 14443A air interface protocol. It has advanced data encryption and two-way password verification system, and 16 completely independent s
Inquiries
Product information

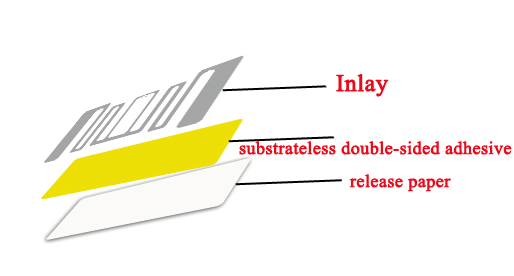

S50 Inlay丨M1 Inlay丨S50 Wet Inlay Structure Diagram
S50 Inlay丨M1 Inlay丨S50 Wet Inlay Technical Parameters
S50 Inlay丨M1 Inlay 丨 S50 Wet Inlay Applications
New retail, asset management, commodity retail, product management, home and school entrance and exit channels, application of library management system, enterprise park, shaft construction site, civil blast enterprise personnel attendance, consumables anti-counterfeiting application, tooling washing management application, large conference personnel channel system , management system of fixed assets, management and application of medical logistics system, management of intelligent shelves, management of jewelry inventory
S50 Inlay丨M1 Inlay丨S50 Wet Inlay Technical Parameters
| Data storage： | ≥10 years |
| Erasure times： | ≥100,000 times |
| Working temperature： | -20℃- 75℃（Humidity20%~90%） |
| Storage temperature： | -40-70℃（Humidity20%~90%） |
| Working frequency： | 13.56MHz |
| Antenna size： | Customized |
| Protocol： | ISO14443A |
| Surface material： | Chrome paper、PVC、PET |
| Encapsulation technology： | Reverse welding+compound |
| Packaging material： | S50 Inlay+Non-base double-sided adhesive+Release paper |
| Reading distance： | 0.2-8M |
| Chips： | Mifare S50 |
| Process individuation： | Chip internal code，Write data. |
| Packaging： | Electrostatic bag packaging, single row 2000 sheets / roll, 6 rolls / box |
S50 Inlay丨M1 Inlay 丨 S50 Wet Inlay Applications
New retail, asset management, commodity retail, product management, home and school entrance and exit channels, application of library management system, enterprise park, shaft construction site, civil blast enterprise personnel attendance, consumables anti-counterfeiting application, tooling washing management application, large conference personnel channel system , management system of fixed assets, management and application of medical logistics system, management of intelligent shelves, management of jewelry inventory
