I-CODE Series Inlay丨I CODE Chip Inlay丨 Wet Inlay
The I-CODE series is a PHILIPS non-contact smart tag chip operating at 13.56MHz. The tag chip conforms to the ISO15693 standard protocol. The chip is mainly for parcel, shipping, air baggage, rental service, retail supply chain management and logistics sy
Inquiries
Product information

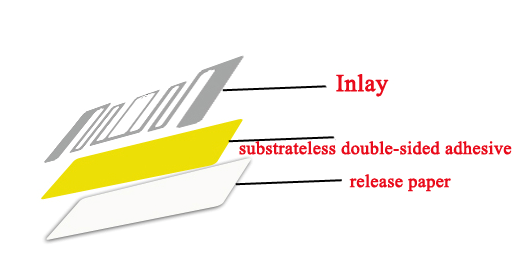

I-CODE Series Inlay丨I CODE Inlay Structure Diagram
I-CODE Series Inlay丨I CODE Inlay Technical Parameters
I-CODE Series Inlay丨I-CODE Inlay Applications
New retail, asset management, commodity retail, product management, home and school entrance and exit channels, application of library management system, enterprise park, shaft construction site, civil blast enterprise personnel attendance, consumables anti-counterfeiting application, tooling washing management application, large conference personnel channel system , management system of fixed assets, management and application of medical logistics system, management of intelligent shelves, management of jewelry inventory
I-CODE Series Inlay丨I CODE Inlay Technical Parameters
| Data storage： | ≥10 years |
| Erasure times： | ≥100,000 times |
| Working temperature： | -20℃- 75℃（Humidity20%~90%） |
| Storage temperature： | -40-70℃（Humidity20%~90%） |
| Working frequency： | 13.56MHz |
| Antenna size： | Customized |
| Protocol： | ISO15693 |
| Surface material： | Chrome paper、PVC、PET |
| Encapsulation technology： | Reverse welding+compound |
| Packaging material： | I-CODE Series Inlay+Non-base double-sided adhesive+Release paper |
| Reading distance： | 0.2-8M |
| Chips： | I-CODE Series |
| Process individuation： | Chip internal code，Write data. |
| Packaging： | Electrostatic bag packaging, single row 2000 sheets / roll, 6 rolls / box |
I-CODE Series Inlay丨I-CODE Inlay Applications
New retail, asset management, commodity retail, product management, home and school entrance and exit channels, application of library management system, enterprise park, shaft construction site, civil blast enterprise personnel attendance, consumables anti-counterfeiting application, tooling washing management application, large conference personnel channel system , management system of fixed assets, management and application of medical logistics system, management of intelligent shelves, management of jewelry inventory
